Série ThermoTrack

Watch The Video

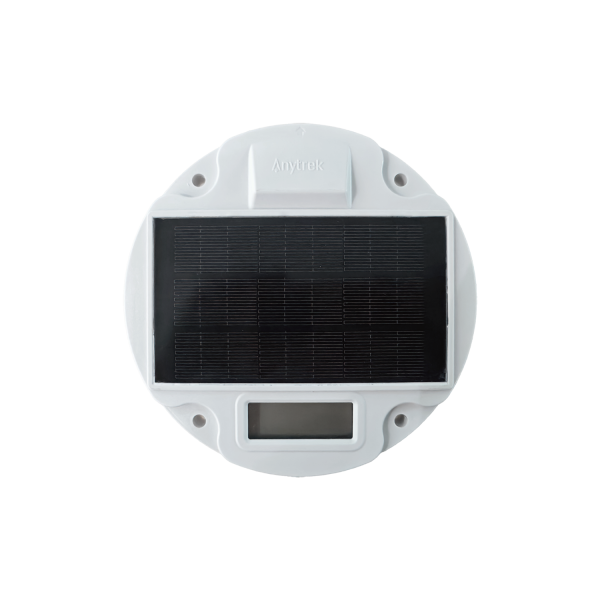

Solar-Powered 4G-Connected Tanker Thermometer with GPS

ThermoTrack is a plug-in replacement for all analog tanker thermometers. Powered by a solar panel and rechargeable battery, it is simple and quick to install as it does not require any wiring or custom installation.

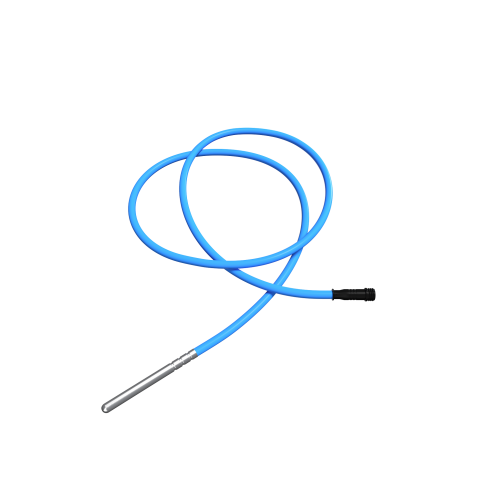

ThermoTrack contains a digital thermometer, GPS module, 4G modem, digital display and a backup battery which is recharged by the built-in solar panel and allows up to 60 days reporting when sunlight is not available. The digital thermometer connects to the inner tanker shell via a well probe or lug cable.

ThermoTrack is suitable for both hot and cold loads as it monitors temperatures from -58 ◦ F to +257◦ F. It is also suitable for food, Kosher and chemical loads. Designed with an IP65 rating, ThermoTrack is suitable for hot caustic washes.

Our ThermoTrack Series Product

ThermoTrack
Accessories
VT2002

VT2002

TrackLight VT2011 looks, functions and installs exactly the same as a standard 6” oval LED Side Marker/Turn light providing the ultimate in covert tracking and simple installation. Designed with a raised profile for enhanced visibility, it is waterproof and shockproof. Inside the lamp case is a powerful GPS module connected via a 3G/4G modem, ensuring location updates are received reliably and accurately.

The built-in Lithium-Ion battery can provide up to 90 days of location reporting with automatic notifications of changed conditions when unpowered. The lights meet all FMVSS P2 photometric requirements for visibility and safety and are DOT and FCC approved. Lenses and housing are made of tough ABS material and are ultrasonically welded.

The TrackLight tracker is true plug and drive. Installation is as simple as replacing one of your own side lights, because that’s all there is to it.

Obtenir un devis
Watch the 3D
AR is not supported on this device

Features & benefits

  • Completely covert; looks, functions and installs the same as a normal LED tail light
  • Uses standard hardshell plug, no extra wiring required
  • Real-time tracking; every 5 minutes when powered, every 15 minutes when unpowered and moving
  • DOT approved amber colored side marker light
  • Self-install, no special tools required; no cutting, drilling, or splicing needed
  • ‘Fast Charging’ power circuit
  • Uses TI ‘Power Path’ technology for instant wake-up when tail lights are turned on
  • Draws power from the tail light circuits
  • Future proof by utilizing the 4G cellular network
  • Internal cellular and GPS antennas
  • Super sensitive GPS tracking
  • 3-axis accelerometer for motion sensing and impact detection
  • Web-based device management

Technical specifications

  • Material: Polycarbonate Lens, PC/ABS Housing
  • Lens Color: Red
  • Housing Color: White
  • Mounting Type: Grommet, mounting flange
  • Voltage: 9-15V
  • Amperage: 0.018A-1.5A
  • Certifications: FCC, ROHS, CE, DOT, IC, PTCRB
  • CONNECTIVITY: 4G
  • Backup Battery: 3600mAH
  • Location Technology: GPS GLONASS
  • IP67 rated enclosure

Information connexes

TrackLight Series Brochure (US EN)

Video introduction
